Selected CV XE GIS project/application views in Texas.

Click toggle in Table of Contents at left to view sub-state applications.



Integrating shapefiles, ACS demographics, Census 2010 demographics, estimates & projections and related data.



See related interactive ranking tables:

•Texas school district demographics: http://proximityone.com/tx_sdc.htm.
•Texas census tract demographics: http://proximityone.com/tracts11dp1.htm.
•Census 2010 demographics: http://proximityone.com/s&o_comparative_profiles.htm

 (all US geography: state, congressional district, county, school district, city/place, metro)



Join the conversation .. ProximityOne on Twitter  -- https://twitter.com/ProximityOne



The toggle graphic -- -- indicates an expanding section.  Click the toggle or toggle line to view/close expanding sections.

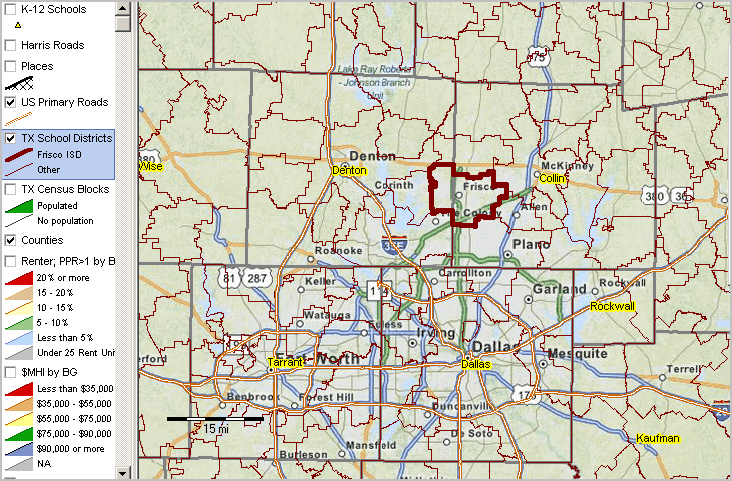

Frisco ISD in Regional Context



Frisco ISD bold brown boundary green fill pattern in context of Dallas-Fort Worth-Arlington, TX MSA counties

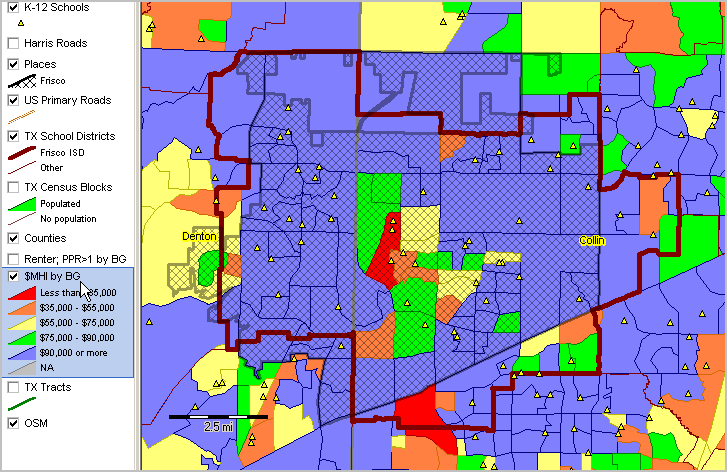

Patterns of Economic Prosperity -- Median Household Income by Block Group



Median Household Income ACS 2007-11 (mid-2009)

... using ACS census tract estimates released December 2012 -- http://proximityone.com/acs0711.htm.

More about block groups -- http://proximityone.com/blockgroups.htm.

See highlighted (blue) layer in legend (left of map) for color/data value interval definitions.

Frisco city diagonal cross-hatch pattern.

Schools yellow markers.

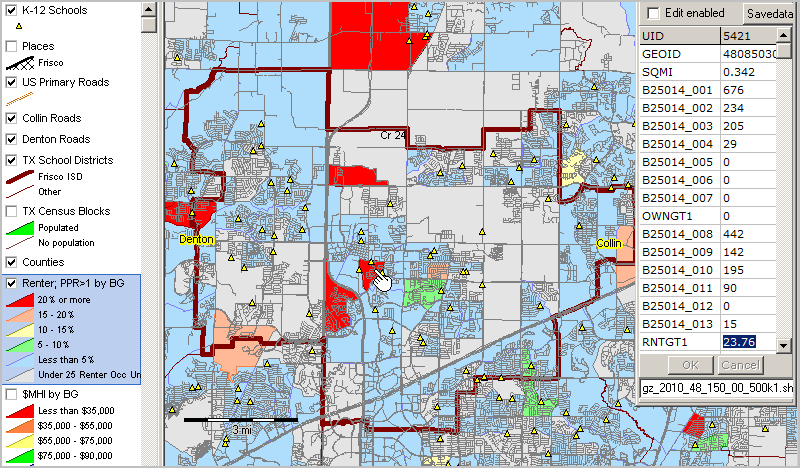

Patterns of Crowding/Persons per Room by Block Group



The view below shows patterns of renter occupied housing units by block group with persons per room 1.00 or more.

Data are based on 2011 American Community Survey (http://proximityone.com/acs0711.htm) 5-year estimates, centric to mid-2009.

See highlighted (blue) layer in legend (left of map) for color/data value interval definitions.

Mini-profile at right shows estimates of number of units by persons per room.

Red block group with pointer has 23.76 renter occupied units with 1.00 or more persons per room.

See additional details below map graphic.



The map view above shows that there are four block group areas/neighborhoods in Frisco ISD that have crowding where crowding is defined as 20% of more renter units having 1.00 or more persons per room and where block groups must have have 25 or more renter occupied units.  The subject matter items shown in the mini profile in the map above are from the ACS 2011 table B25014.  Items in this table, and shown by variable name in the mini profile above, are further described in the table shell shown below.





TENURE BY OCCUPANTS PER ROOM



Universe:  Occupied housing units

B25014_001

Total:

B25014_002

Owner occupied:

B25014_003

0.50 or less occupants per room

B25014_004

0.51 to 1.00 occupants per room

B25014_005

1.01 to 1.50 occupants per room

B25014_006

1.51 to 2.00 occupants per room

B25014_007

2.01 or more occupants per room

B25014_008

Renter occupied:

B25014_009

0.50 or less occupants per room

B25014_010

0.51 to 1.00 occupants per room

B25014_011

1.01 to 1.50 occupants per room

B25014_012

1.51 to 2.00 occupants per room

B25014_013

2.01 or more occupants per room

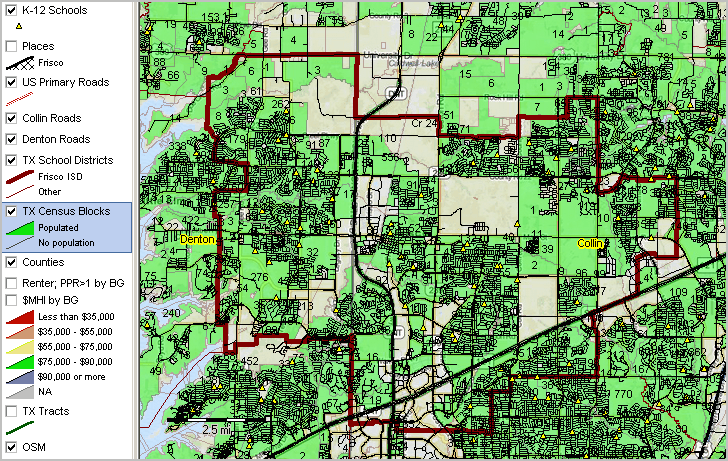

Patterns of Census 2010 Population by Census Block



Populated census blocks green; unpopulated (Census 2010) clear (see through to base layer).

More about these data: http://proximityone.com/cen2010_blocks.htm.

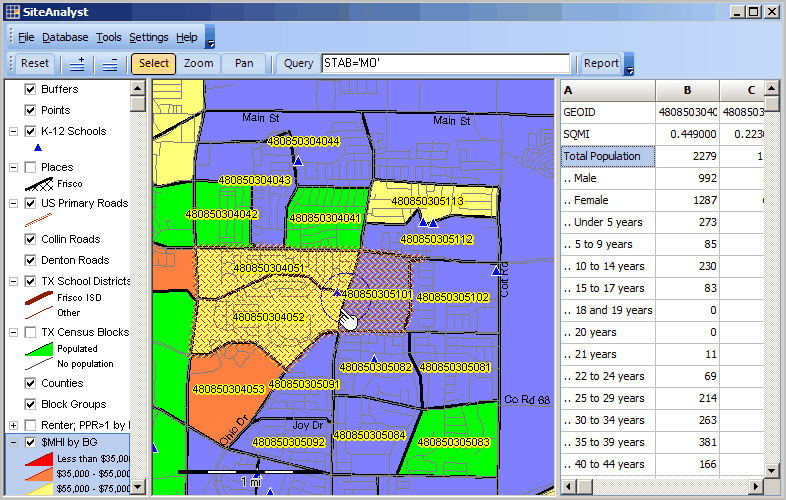

Site Analysis -- Examining Characteristics of a Study Area



Zoom-in view, block group areas (avg 1200 population) appear with bold black boundaries.

More about block groups -- http://proximityone.com/blockgroups.htm.

Three BGs selected (cross hatched) -- profile appears at right.

Report button is clicked; summary profile shown below map.



Site Analysis Demographic-Economic Profile for Study Area

Block Groups: 480850304052 480850305101 480850304051 -- see map view above.

More about block groups -- http://proximityone.com/blockgroups.htm.

Summary for three BGs shown in rightmost column.

GEOID480850304052480850305101480850304051...
SQMI 0.449000 0.223000 0.275000 0.947000
Total Population 2,279 1,162 1,748 5,189
.. Male 992 554 951 2,497
.. Female 1,287 608 797 2,692
.. Under 5 years 273 43 74 390
.. 5 to 9 years 85 32 288 405
.. 10 to 14 years 230 54 98 382
.. 15 to 17 years 83 75 77 235
.. 18 and 19 years 0 75 13 88
.. 20 years 0 0 52 52
.. 21 years 11 0 0 11
.. 22 to 24 years 69 20 83 172
.. 25 to 29 years 214 84 150 448
.. 30 to 34 years 263 159 190 612
.. 35 to 39 years 381 99 142 622
.. 40 to 44 years 166 153 163 482
.. 45 to 49 years 176 176 138 490
.. 50 to 54 years 88 0 94 182
.. 55 to 59 years 30 53 49 132
.. 60 and 61 years 3 0 14 17
.. 62 to 64 years 51 49 23 123
.. 65 and 66 years 80 0 58 138
.. 67 to 69 years 0 46 0 46
.. 70 to 74 years 0 23 0 23
.. 75 to 79 years 38 0 17 55
.. 80 to 84 years 0 21 0 21
.. 85 years+ 38 0 25 63
.. Median age 33.1 37.4 30.5 33.67
Total Population 2,279 1,162 1,748 5,189
.. White alone 1,790 446 1,286 3,522
.. Black alone 127 180 90 397
.. American Indian/Alaska Native alone 0 0 0 0
.. Asian alone 170 529 21 720
.. Native Hawaiian or Pacific Islander alone 0 0 0 0
.. Some other race alone 172 7 85 264
.. Two or more races 20 0 266 286
.. Hispanic 456 33 258 747
Total Households 798 572 723 2,093
.. Family households 652 333 514 1,499
.... Married couple family 590 295 292 1,177
.... Other family 62 38 222 322
...... Male householder, no wife present 10 0 55 65
...... Female householder, no husband present 52 38 167 257
.. Nonfamily households 146 239 209 594
.... Householder living alone 85 233 178 496
.... Householder not living alone 61 6 31 98
Households with children under 18 years (B11005) 406 183 311 900
Households with persons 65 yrs or over (B11007) 122 44 68 234
Average Household Size (B25010/H012) 2.86 2.03 2.42 2.44
Average Household Size -- owner occupied 2.82 1.67 2.67 2.39
Average Household Size -- renter occupied 2.89 3.17 2.25 2.77
Population in Households (B11002/P029) 2,279 1,162 1,748 5,189
Population 3 years and over 2,173 1,119 1,694 4,986
.. Enrolled in school: 567 248 602 1,417
.. Enrolled in nursery school, preschool 62 0 21 83
.... Public school 62 0 0 62
.... Private school 0 0 21 21
.. Enrolled in kindergarten: 0 18 26 44
.... Public school 0 18 26 44
.... Private school 0 0 0 0
.. Enrolled in grade 1 to grade 4: 78 14 223 315
.... Public school 78 0 223 301
.... Private school 0 14 0 14
.. Enrolled in grade 5 to grade 8: 210 54 53 317
.... Public school 185 40 53 278
.... Private school 25 14 0 39
.. Enrolled in grade 9 to grade 12: 83 75 104 262
.... Public school 83 75 104 262
.... Private school 0 0 0 0
.. Enrolled in college undergraduate 95 75 132 302
.... Public school 79 75 109 263
.... Private school 16 0 23 39
.. Enrolled in graduate or profession 39 12 43 94
.... Public school 39 12 14 65
.... Private school 0 0 29 29
.. Not enrolled in school 1,606 871 1,092 3,569
Population 25 years and over 1,528 863 1,063 3,454
.. No schooling completed 0 0 0 0
.. Nursery to 4th Grade 0 0 0 0
.. 5th and 6th Grade 0 0 0 0
.. 7th and 8th Grade 22 0 17 39
.. 9th Grade 0 0 4 4
.. 10th Grade 0 0 0 0
.. 11th Grade 0 0 0 0
.. 12th, no diploma 56 0 0 56
.. High School Graduate, GED, alternative 336 123 150 609
.. Some college, less than 1 year 58 0 114 172
.. Some college, 1 or more years, no degree 234 43 261 538
.. Associate's degree 225 63 92 380
.. Bachelor's degree 413 368 341 1,122
.. Master's degree 184 177 84 445
.. Professional school degree 0 45 0 45
.. Doctorate degree 0 44 0 44
Population 5 years and over 2,006 1,119 1,674 4,799
.. Population 5 to 17 years: 398 161 463 1,022
.. Speak only English 201 54 419 674
.. Speak Spanish: 109 0 31 140
.... Speak English "not well" 0 0 0 0
.... Speak English "not at all" 0 0 0 0
.. Speak other Indo-European languages: 36 0 13 49
.... Speak English "not well" 0 0 0 0
.... Speak English "not at all" 0 0 0 0
.. Speak Asian and Pacific Island languages: 52 107 0 159
.... Speak English "not well" 0 0 0 0
.... Speak English "not at all" 0 0 0 0
.. Speak other languages: 0 0 0 0
.... Speak English "not well" 0 0 0 0
.... Speak English "not at all" 0 0 0 0
Households -- Income 798 572 723 2,093
.. Less than $10,000 21 0 0 21
.. $10,000 to $14,999 69 0 0 69
.. $15,000 to $19,999 0 0 0 0
.. $20,000 to $24,999 39 0 98 137
.. $25,000 to $29,999 0 0 16 16
.. $30,000 to $34,999 10 0 33 43
.. $35,000 to $39,999 18 94 40 152
.. $40,000 to $44,999 68 74 0 142
.. $45,000 to $49,999 0 0 6 6
.. $50,000 to $59,999 96 23 125 244
.. $60,000 to $74,999 127 29 78 234
.. $75,000 to $99,999 121 60 152 333
.. $100,000 to $124,999 138 128 86 352
.. $125,000 to $149,999 11 15 53 79
.. $150,000 to $199,999 47 149 36 232
.. $200,000 or more 33 0 0 33
.. Median Household Income (B19003) 63,790 100,714 70,380 78,295
.. Median Family Income (B19113) 64,677 105,417 78,750 82,948
.. Per Capita Income (B19301) 27,637 47,770 31,044 35,484
.. All families (B17010) 652 333 514 1,499
.... With income past 12 months below poverty 91 0 0 91
...... Married-couple family (in poverty) 39 0 0 39
........ With related children under 18 yrs 39 0 0 39
Reserved    -6
Reserved    -6
Population 16 years and over 1,649 1,033 1,255 3,937
.. In labor force 1,277 667 1,076 3,020
.... In Armed Forces 0 0 0 0
.... Civilian 1,277 667 1,076 3,020
...... Employed 1,209 667 1,033 2,909
...... Unemployed 68 0 43 111
.. Not in labor force 372 366 179 917
Housing Units (B25001) 877 572 780 2,229
.. Occupied housing units 798 572 723 2,093
.... Owner-occupied housing units 392 433 287 1,112
.... Renter-occupied housing units 406 139 436 981
.. Vacant housing units 79 0 57 136
.... For Rent 0 0 23 23
.... For seasonal, recreational, occ use 0 0 0 0
Total Housing Units 877 572 780 2,229
.. 1, detached 523 393 376 1,292
.. 1, attached 62 179 0 241
.. 2 0 0 0 0
.. 3 or 4 31 0 25 56
.. 5 to 9 10 0 73 83
.. 10 to 19 127 0 125 252
.. 20 to 49 124 0 91 215
.. 50 or more 0 0 90 90
.. Mobile home 0 0 0 0
.. Boat, RV, van, etc. 0 0 0 0
Total Housing Units 877 572 780 2,229
.. Built 2005 or later 57 30 109 196
.. Built 2000 to 2004 73 329 114 516
.. Built 1990 to 1999 628 213 515 1,356
.. Built 1980 to 1989 119 0 42 161
.. Built 1970 to 1979 0 0 0 0
.. Built 1960 to 1969 0 0 0 0
.. Built 1950 to 1959 0 0 0 0
.. Built 1940 to 1949 0 0 0 0
.. Built 1939 or earlier 0 0 0 0
Median Year Structure Built 1995 2001 19971998
Owner-Occupied Housing Units 392 433 287 1,112
.. Less than $10,000 0 0 0 0
.. $10,000 to $14,999 0 0 0 0
.. $15,000 to $19,999 0 0 0 0
.. $20,000 to $24,999 0 0 0 0
.. $25,000 to $29,999 0 0 0 0
.. $30,000 to $34,999 0 0 0 0
.. $35,000 to $39,999 0 0 0 0
.. $40,000 to $49,999 0 0 0 0
.. $50,000 to $59,999 0 0 0 0
.. $60,000 to $69,999 0 0 0 0
.. $70,000 to $79,999 0 0 0 0
.. $80,000 to $89,999 0 0 0 0
.. $90,000 to $99,999 0 0 0 0
.. $100,000 to $124,999 0 0 0 0
.. $125,000 to $149,999 51 16 0 67
.. $150,000 to $174,999 151 160 152 463
.. $175,000 to $199,999 130 140 100 370
.. $200,000 to $249,999 26 15 35 76
.. $250,000 to $299,999 34 102 0 136
.. $300,000 to $399,999 0 0 0 0
.. $400,000 to $499,999 0 0 0 0
.. $500,000 to $749,999 0 0 0 0
.. $750,000 to $999,999 0 0 0 0
.. $1,000,000 or more 0 0 0 0
Median Housing Value (owner-occupied units) 174,000 182,200 173,600 176,600
Renter-Occupied Housing Units 406 139 436 981
With Cash Rent 406 139 436 981
.. Less than $100 0 0 0 0
.. $100 to $149 0 0 0 0
.. $150 to $199 0 0 0 0
.. $200 to $249 0 0 0 0
.. $250 to $299 0 0 0 0
.. $300 to $349 0 0 0 0
.. $350 to $399 0 0 0 0
.. $400 to $449 0 0 0 0
.. $450 to $499 0 0 0 0
.. $500 to $549 0 0 0 0
.. $550 to $599 0 0 0 0
.. $600 to $649 0 0 0 0
.. $650 to $699 0 0 17 17
.. $700 to $749 0 0 33 33
.. $750 to $799 0 0 0 0
.. $800 to $899 33 0 71 104
.. $900 to $999 18 0 73 91
.. $1,000 to $1,249 137 0 180 317
.. $1,250 to $1,499 104 74 28 206
.. $1,500 to $1,999 114 65 34 213
.. $2,000 or more 0 0 0 0
No Cash Rent 0 0 0 0
Median Gross Rent (renter-occupied; cash rent) 1,286 1,485 1,033 1,268

Notes
  developed using ProximityOne ProximityOne CV XE GIS SiteAnalyst Component



ProximityOne -- resources to create and apply insights © ProximityOne
